- Place of Origin:CN;GUA
- Properties:Medical Materials & Accessories
- Instrument classification:Class III

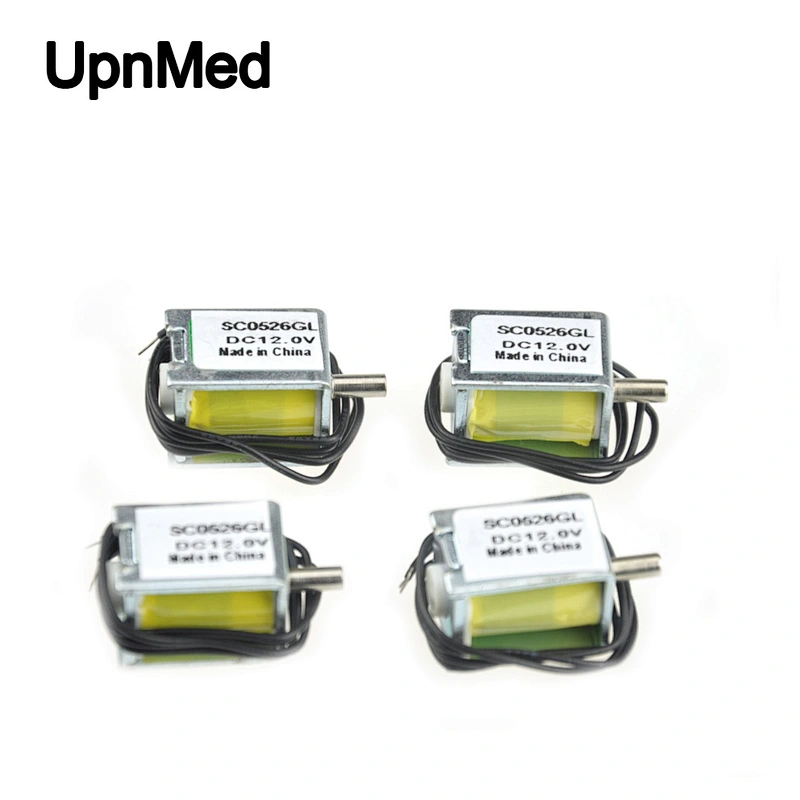

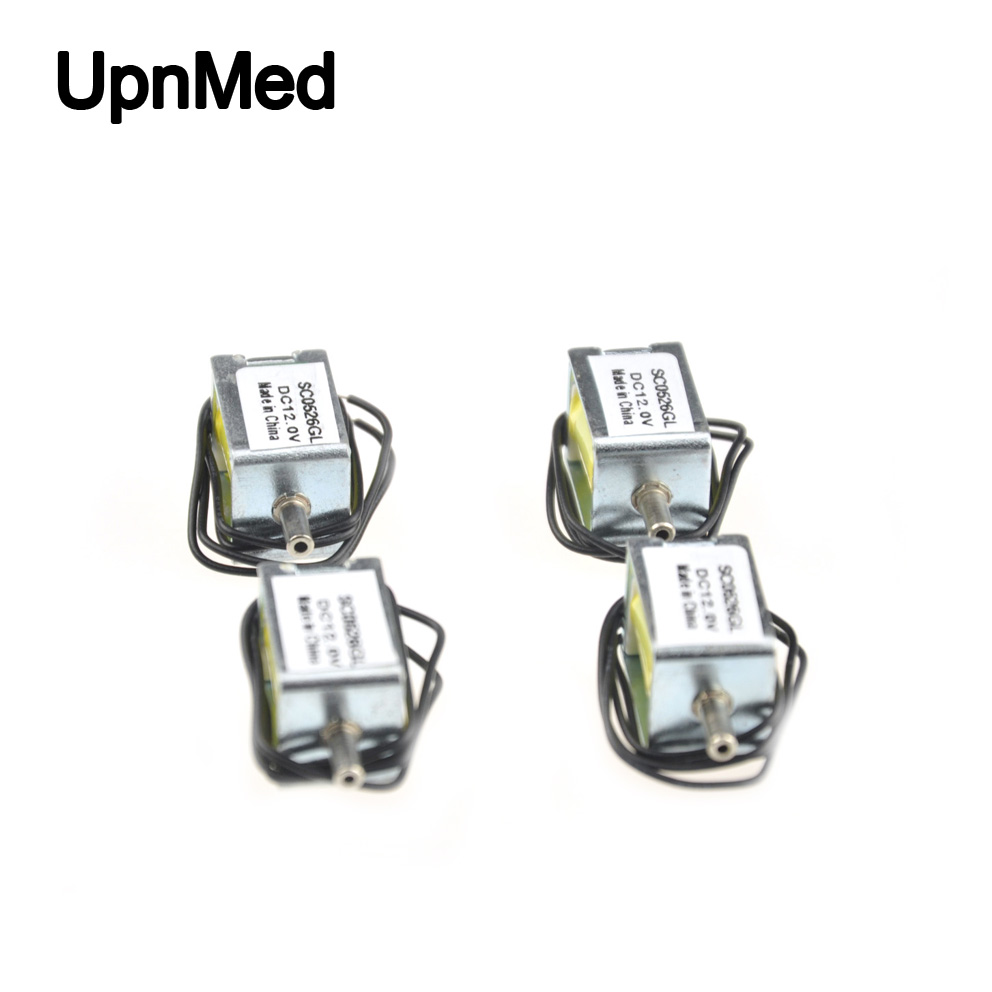

12 Vsolenoid valve
weight:0.02kg
| Product name | Electromagnetism Walve/ Solenoid valve |
| Conductor Material | copper |
| Number of Conductors | 1unit |
| Insulation Material | iron |
| position | Horizontal |
| Operate voltage range | DC10.8V-13.2V |
| Rated voltage | DC 12.0V |
| DC Resistance | 270Ω±10%(Ambient temperature of 25°C) |
| Rated power consumption | 0.54W |
| Range of operated pressure | Max 350 mmHg |
| Range of preservation temperature | -25~60°C |
| Range of operated temperature | 0~45°C |
| Used fluid | Air |
Leakage :
Connecting the valve with DC 10.8V to pressurize from 0 to 300 mmHg
in a 100CC tank,then waiting for 30 seconds After that,which shall be
lower than 3mmHg/Min
Exhaust speed:
Testing in a 100CC tank,it takes less than 3.0 seconds to exhaust the pressure
from 300 mmHg to 15 mmHg.
Temperature rise: Connecting with DC 12.0V continuously,the saturated temperature is 50°C MAX.

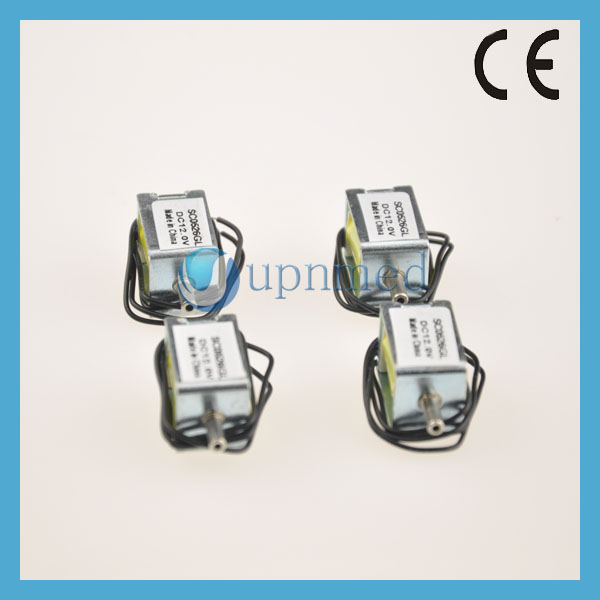

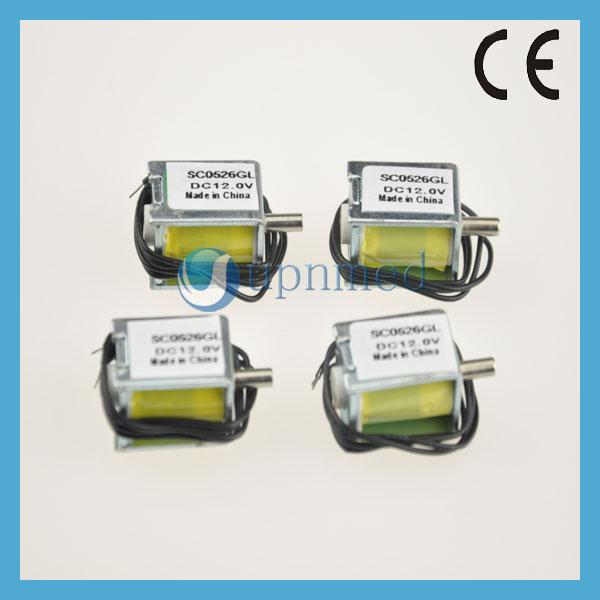

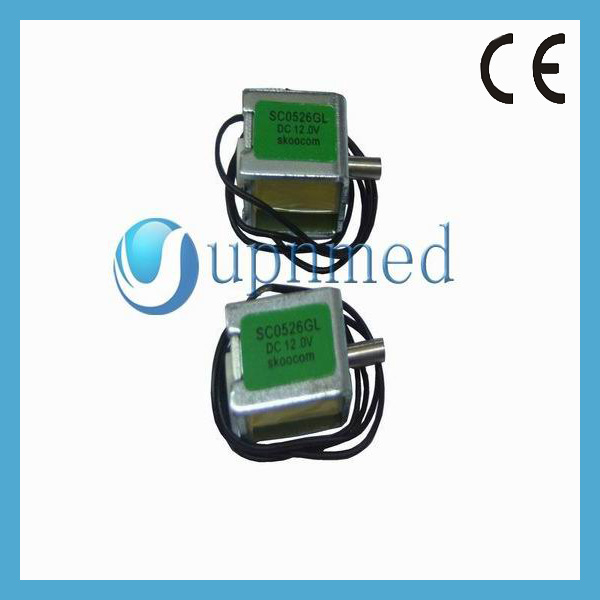

Product picture show
