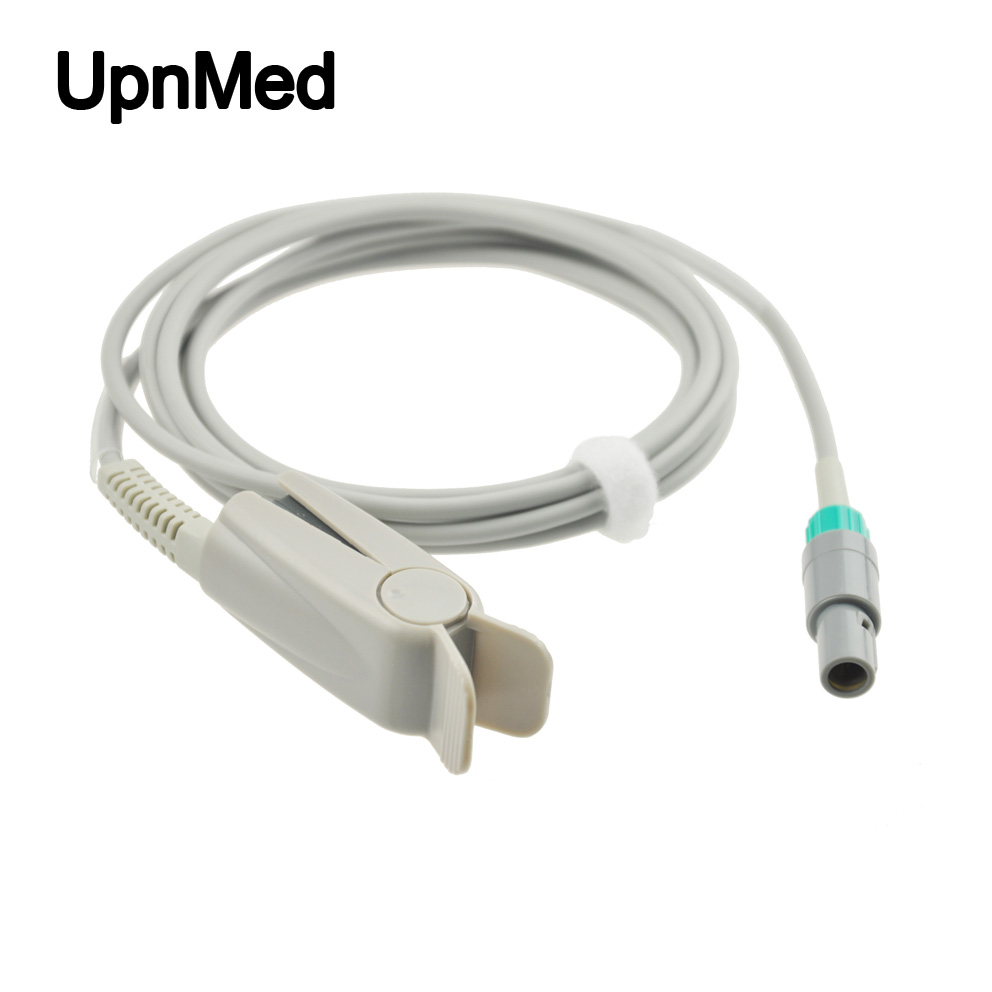

3F Medical IRIS 400 vital sign monitor spo2 sensor, 6pins, 3m

3F Medical IRIS 400 vital sign monitor spo2 sensor, 6pins, 3m

 1.Description: 3F Medical adult finger clip spo2 sensor ,3m

2. Connector:6pin;

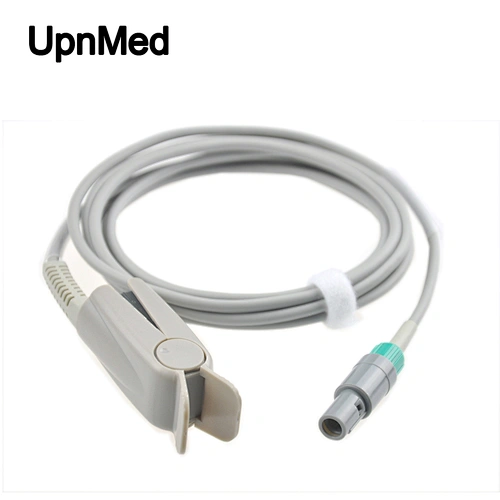

3. Compatible models: 3F machine IRIS 300/IRIS400, Phoebe PMS8300/8310, Phoebe Pro PMS8300/8310PMS8110A

Brand Name: 3F

Connector: Single notch,6pin

Patient type: >40KG

Finger type: Adult Finger Clip

 Material: TPU,3M

Warranty: 1 Year

Certificate: CE, ISO13485

 4. Types:Adult finger clip SpO2 sensor, Adult Silicone Soft Rubber SpO2 sensor, Pediatric Clip SpO2 sensor, Pediatric Silicone SpO2 sensor, Neonate Wrap SpO2 sensor, Neonate Y type SpO2 sensor, Adult Ear Clip SpO2 sensor, Animal ear clip SpO2 sensor;

5. Related Products:Extension Cable,  ECG Cable with leadwires, IBP Cable, Disposable Transduer, NIBP Cuff, NIBP Tube,  Temperatrue Probe.

Process flow

1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
