- Place of Origin:CN;GUA
- Properties:Medical Materials & Accessories
- Instrument classification:Class I
- Brand Name:Din

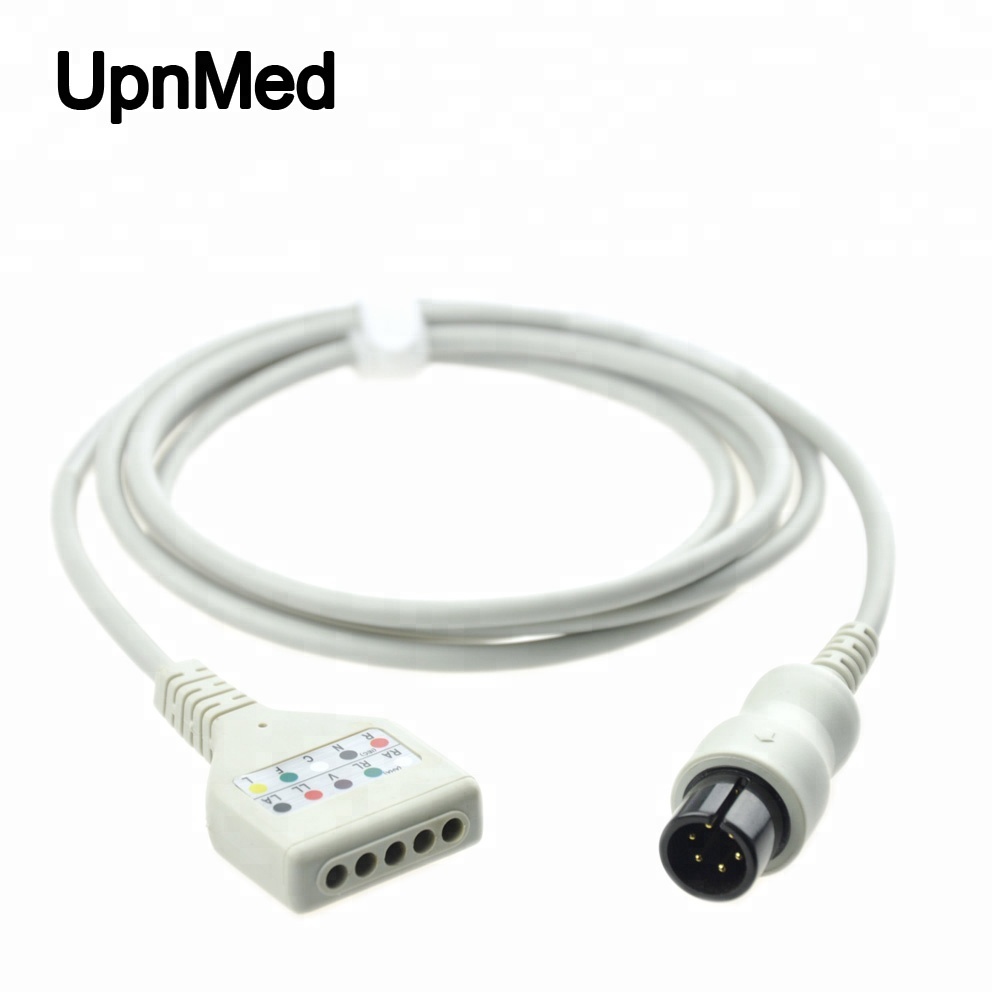

Din 5 Lead ECG trunk cable,6pin
Description: Din 5 Lead ECG trunk cable,6pin
Connector:Round 6pin connector Din 5-lead yoke
Trunk Cables
The 3 meter (10 ft) patient cable assembly uses shielded, low noise cable to minimize tribo-electric noise and electrical nterference. Flex-reliefs at both the connector and cable yoke provide flexibility and reduce continuity breakage.these cable yokes are labeled to clearly depict both AHA and IEC color coding for quick and easy lead attachment. Part numbers and lot numbers indicate equipment compatibility and product traceability.
Product Describe | Din 5 Lead ECG trunk cable,6pin |
| Warranty
| 1.Reusable spo2 sensor, Spo2 adapter cable---12 months 2.Temperature probe, ECG cable,EKG cable, IBP cable -6 months 3.NIBP cuff ---3months |
Connector | Round 6pin connector Din 5-lead yoke |
Process flow:
1. Wire cutting -- 2. Stripping outer coating -- 3. Shield twisting -- 4. Wire repair-- 5 .Sleeve crimping --
6. Open core --7. End pressing-- 8. Welding button -- 9. Internal mold forming -- 10. Outer mold forming--
11. Test -- 12. Cable cutting --13. Stripping outer coating-- 14. Shield twisting -- 15. Sleeve crimping --
16. Open core -- 17. Welding -- 18. Forming plugs of internal mold -- 19. Forming plugs of internal mold --
20. Inspection of cable -- 21. Welding distributor -- 22. Internal mold of distributor --
23. Outer mold of distributor -- 24. Test -- 25 .Visual inspection -- 26.Package
