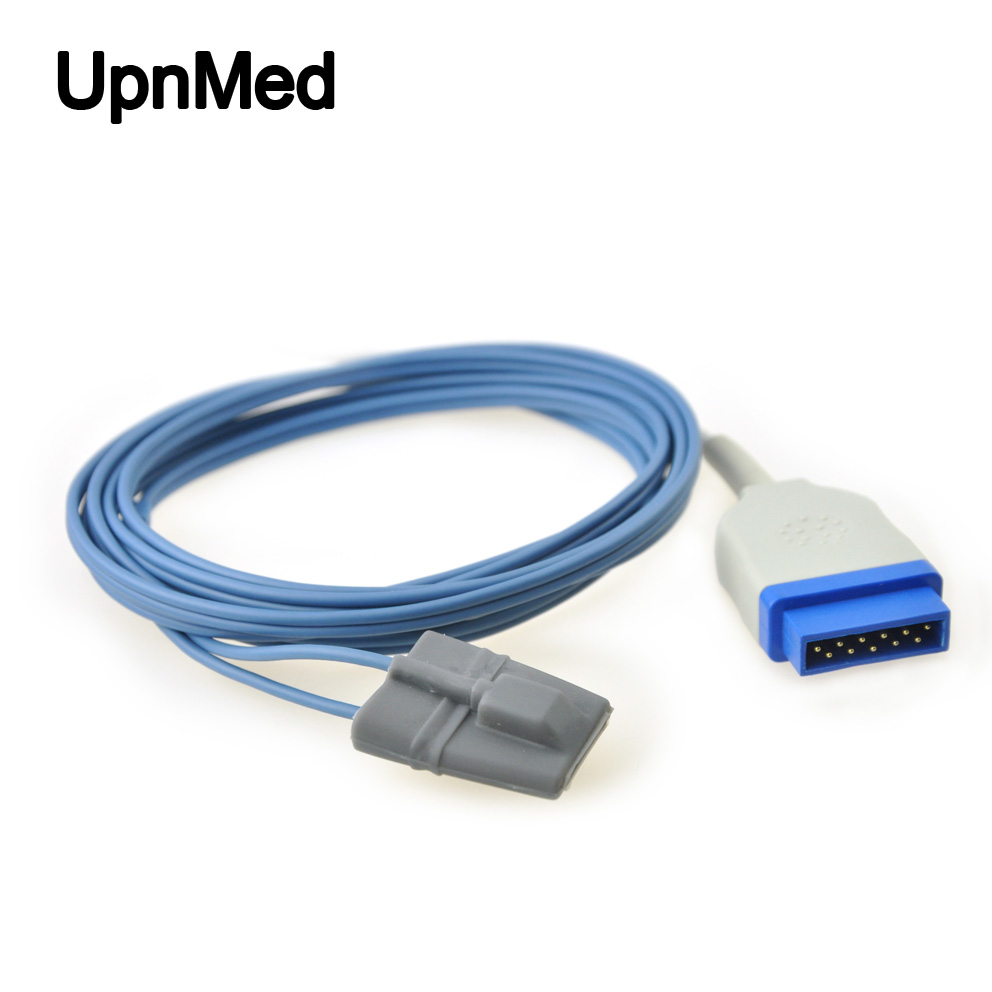

Ge-Marquette Dash2500 Pediatric silicone soft tip spo2 Sensor,11pins

Ge-Marquette Pediatric silicone soft tip spo2 Sensor,11pins

A: Connector Guide: Rectangle11P;

B: Normal Length: L=2.8M;

C: Oringinal OEM: Na;

D: Avaiable Models: Dash 2000, 2500, 3000, 4000, Solar 7000, 8000 Eagle: 1000, 3000, SMK, SMV;

E: Types: Adult finger clip SpO2 sensor, Adult Silicone Soft Rubber SpO2 sensor, Pediatric Clip SpO2 sensor, Pediatric Silicone SpO2 sensor, Neonate Wrap SpO2 sensor, Neonate Y type SpO2 sensor, Adult Ear Clip SpO2 sensor, Animal ear clip SpO2 sensor;

F: Related Products: GE Extension Cable, GE ECG Cable with leadwires, GE IBP Cable, GE Disposable Transduer, GE NIBP Cuff, GE NIBP Tube, GE Temperatrue Probe.

Process flow

1.Wire cutting -- 2.Sheath Stripping -- 3.Shield Twisting -- 4.Sleeve Crimping -- 5.Tin soldering -- 6.End Pressing -- 7.Set Plastic Shell -- 8.Electrical Test -- 9.Internal Mold Forming -- 10.Outer Mold Forming -- 11.Visual Inspection -- 12.Electrical Test -- 13.Thread end of network -- 14.Sheath tripping -- 15.Shield twisting -- 16.Tin soldering -- 17.Chips welding -- 18.Glue dispensing --19.Assembly -- 20.Final test -- 21.Package
