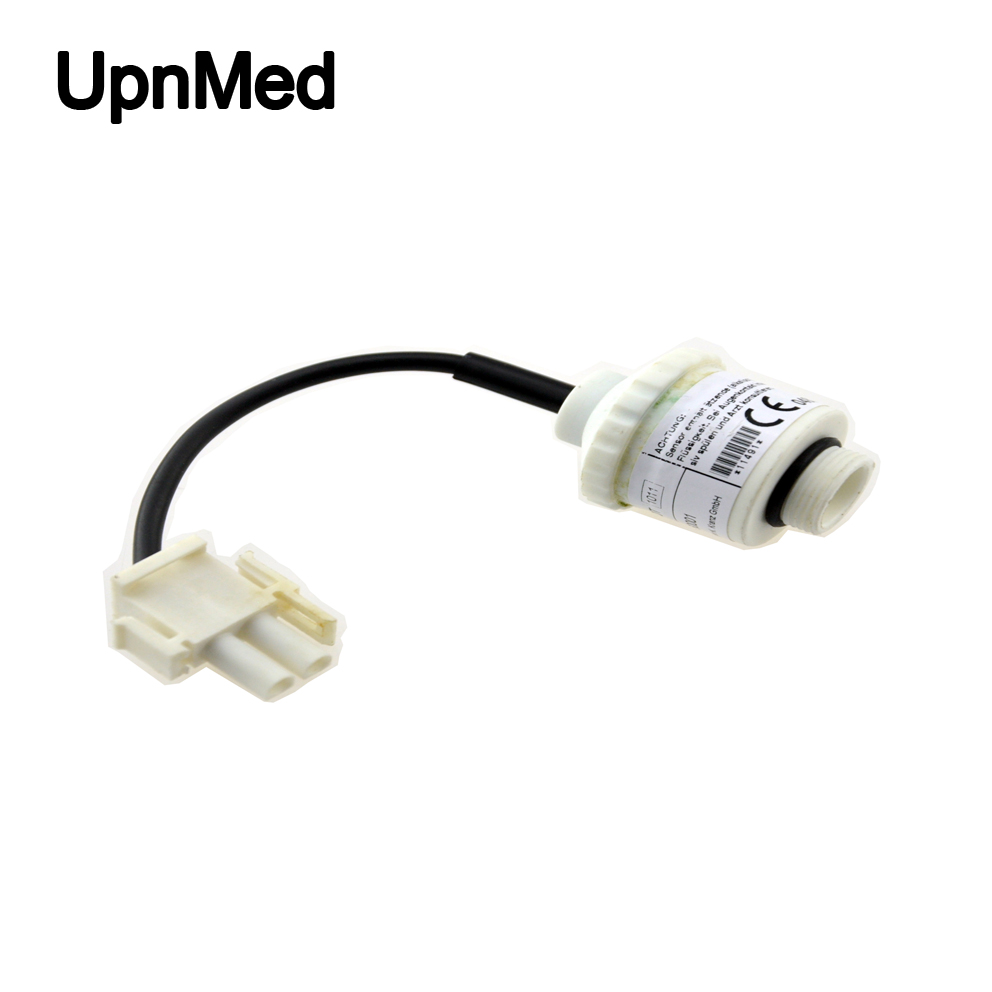

M-15 oxygen sensor O2 cell
Product Description
M-15 oxygen sensor medical O2 sensor
Long life oxygen measurent cell with high signal stability at low cross interferences to anesthesia gases combined with superior linearity over the entire range.
Compatibility Oxygen sensor cells: Envitec OOM102-1, Teledyne R17MED
Instruments:
Envitec OxiQuant M
Ohio Medical (MSA) MiniOX 3000
Spacelabs 015-0285-00
Stephan Artec, Christina
Taema Alys, Clarys, YR010100
Teledyne TED AX300, MX300
| Electrical Connector: | 3.5 mm mono jack |
| Measurement Range: | 0 to 100 Vol.% O2 |
| Expected Operating Life: | Less than 6 years at ambiant air |
| Output Signal: | 8 to 12 mV at dry ambiant air with a load of 600 Ohm |
| Response Time: | Less than 12 sec |
| Operating Temperature: | 0°C to 40°C (32°F to 104°F) |
| Recommended Load: | 10 kOhm |
| Shelf Life: | Less than 6 months recommended |
| Warranty: | 12 months |
| Color: | White |
