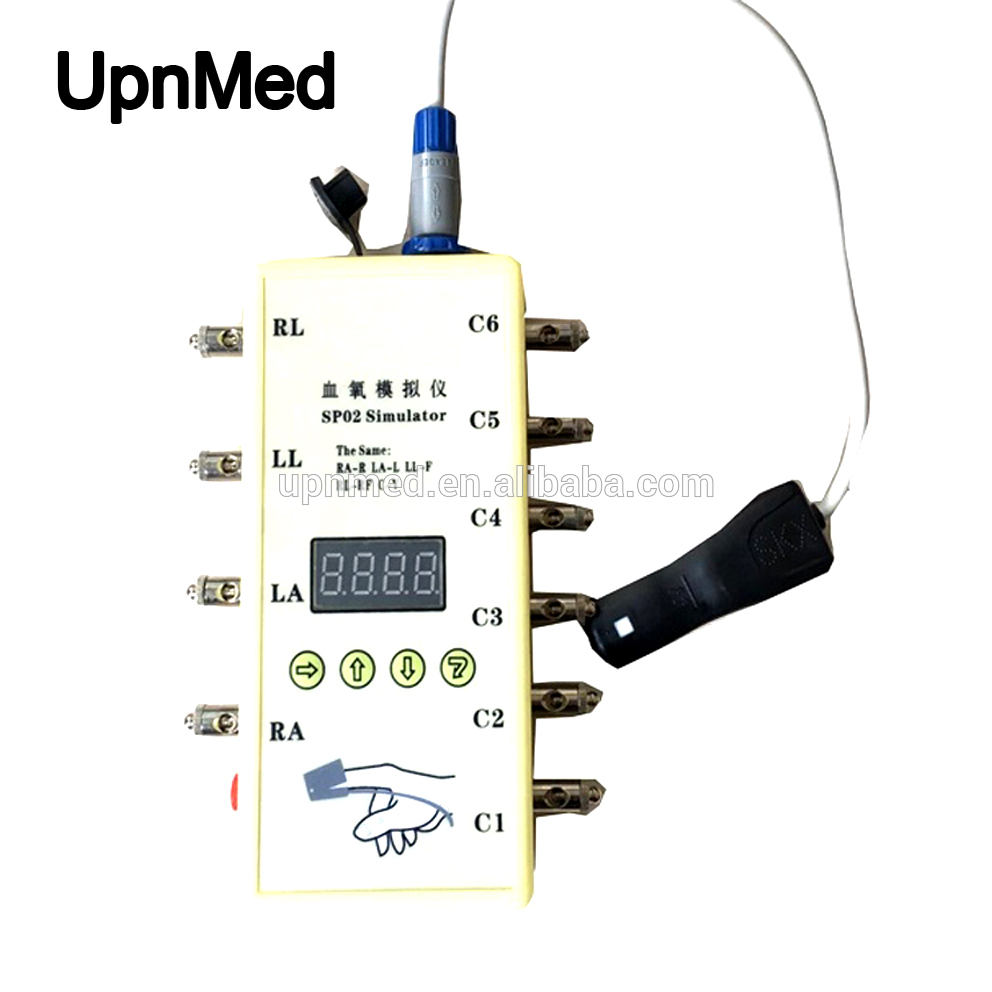

medical equipment ECG simulator,Spo2 detector, SpO2 simulator,

Model NO.: SKX-1000D
Price:: US $ 360.00-480.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 200 unit / Day
Country of Origin: EXW

Quantity:

Product Description

Type:Pathological Analysis Equipments
Place of Origin:CN;GUA
Instrument classification:Class I
Brand Name:upnmed
Model Number:SKX-1000D

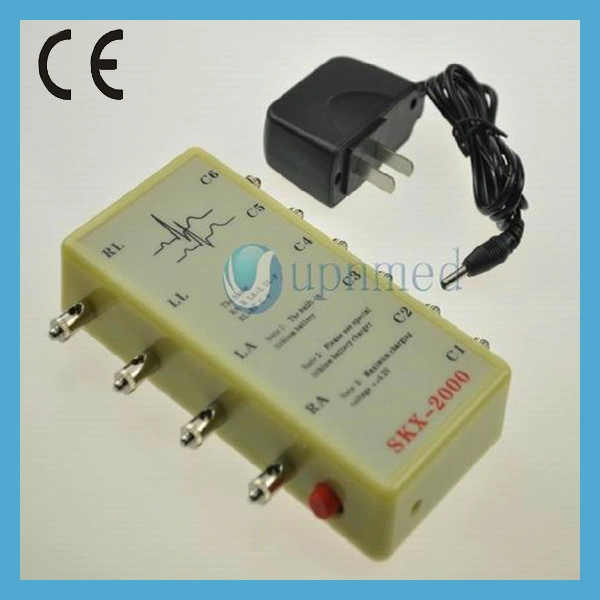

The instructions on SKX - 2000 - a ecg signal simulator
1) this charger through A variety of certification, the output voltage of 4.2 V, current 0.5 A, limiting current of 0.6 A, with perfect over-current, short circuit protection function, after full without immediately cut off the power and will not overcharge.Solid material, abandoned the low power with 13001 (A) 0.5 triode, adopted 13003 transistors (1.5 A) directly, makes the power allowance is very full, will not fail even in extreme conditions.
Taken the output voltage: 4.2 V
Taken the output current: 500 mA (3.5 round hole plug)
Taken as the input voltage: 110 v to 240 v
2) output 2 wires, the output green light for normal standby mode, charging for a red light, when the battery voltage is 4.16 V or so red light turns green, the charger is not completely stopped, but in small current trickle continue to charge, by the highest voltage of 4.21 V.How do the charger with a full range of protection, so wiring short circuit will not damage the charger.
3) light state said:
Taken the green light for standby state trickle charging (4.16 V)
Painted red light for charging!
U flash of green light for over voltage of 4.21 V
U flash a red light to battery failure or short circuit
4) the charger with short circuit, over flow pressure, are negative against short circuit protection.
Note:
1, the emulator electricity automatically generated waveform after 1 normal ecg waveform.
2, in order to prevent users forget to turn off the power supply in the process of use, system design for after 24 hours, the CPU will enter standby mode, so that power saving, boot will work again.
3, electrocardiogram machine connection: RA - the right hand, LA - left hand, LL - his left foot, RL - his right foot, C1 - C6 chest guide
4, monitor connection: RA - the right hand (white), LA - left hand (black), LL - left foot (red), RL - right foot (green), C1 - C6 lead thoracic (brown)
5, three connection method: RA - the right hand (white), LA - left hand (black), LL - left foot (red)
6, the standard of law: they can L - LA R - RA RF (N) - RL F - LL C - V
