日本光电十二导联线

• Place of Origin:CN;GUA
• Brand Name:Nihon Kohden
• Model Number:Cardiofax6151

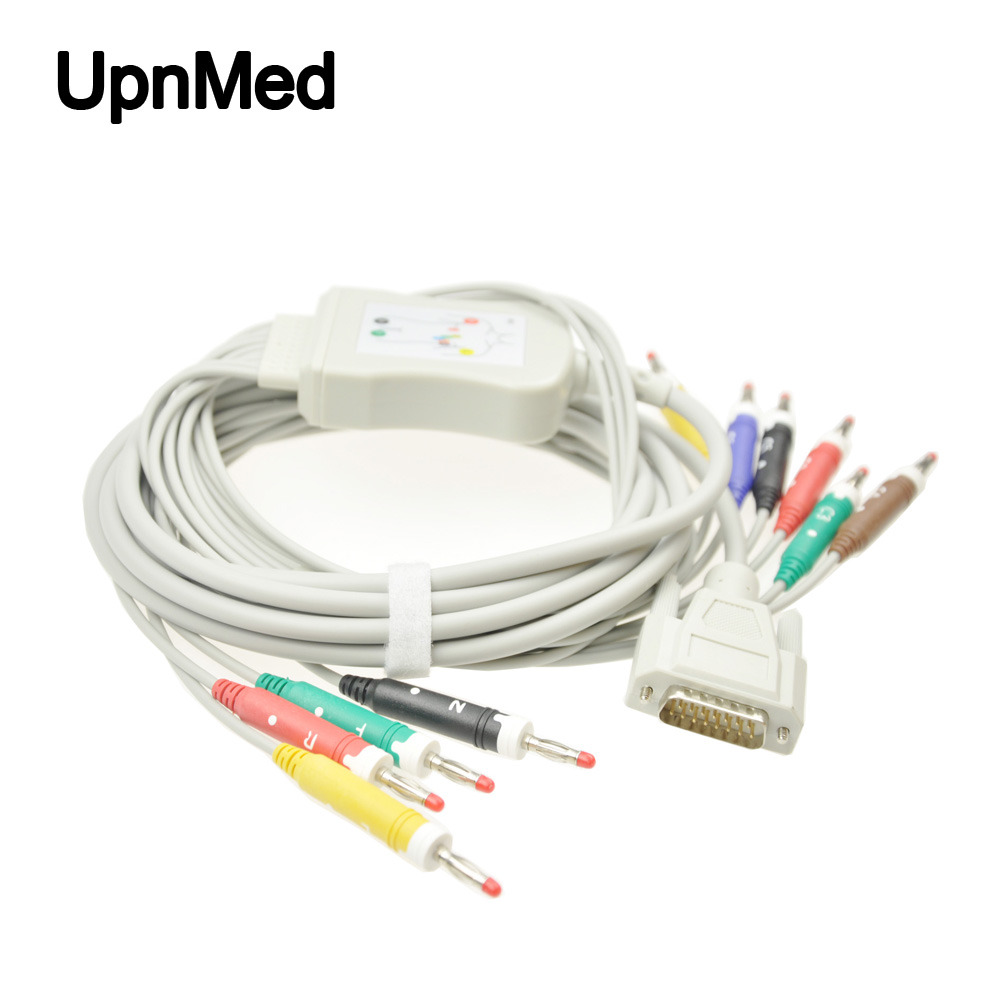

Nihon Kohden Cardiofac 6151 ten lead EKG cable, 15pins

Instrument connector:15pins

Compadtibility: Nihon Kohden Cardiofax, 6151, 6851, 6353, 8110, 8330, 8330A, Escape 12, Edan Smart ECG, Danatech, and Dr. Lee EKGs 120B.

This cable is available with the lead endings:Banana4.00mm,Needle3.00mm,clip ,Snap

Defibrillation withstand:4.7Kohm resistance

Storage and transport environment: -5~+40°C
Operating temperature: 0~+40°C

Humidity
Operating/Storage/Transportation 0% to 80% non condensing Altitude
Hyperbaric Pressure 86kPa~106kPa
Biocompatibility: All patient contact materials are latex free and have been tested Instrument

Connectors
A variety of 15 pin D-subminiature connector and round type solutions are available in either metal or plastic connectors, overmolded housings and straight or angled flex-reliefs. Connectors are surrounded by insert molded flex-reliefs to protect terminations and extend product life.

Trunk Cables
The multi-link an 2 meter (80 inch) trunk cable Shielded, low noise cable minimizes microphonic noise and electrical nterference. Flexreliefs at the connector and cable yoke provide added durability and reduce conductor breakage. The cable
is available in AHA or IEC nomenclature and color coded patient terminations. Lot numbers are included to indicate quipment compatibility and product traceability.
